> 8 MP AcuSense Varifocal Dome
Reduced price! 8 MP AcuSense Varifocal Dome View larger

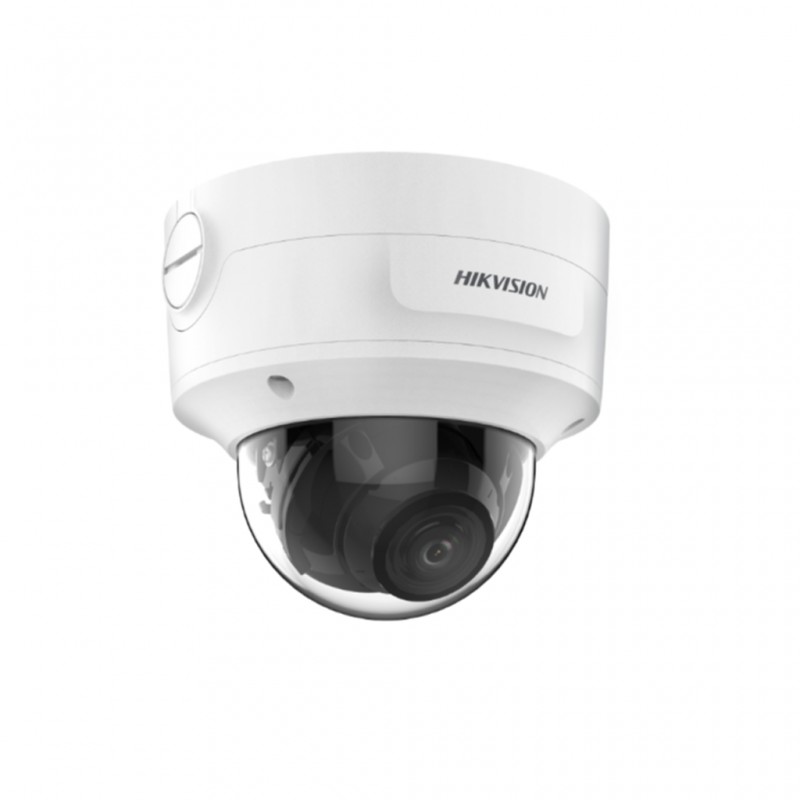

8 MP AcuSense Varifocal Dome

PCI-D18Z2S

New

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
  • 3D DNR technology delivers clean and sharp images

More details

$200.00

-18%

$243.90

More info

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • Lens TypeVarifocal lens, motor-driven lens, 2.7 to 13.5 mm and 7 to 35 mm optional
  • Focal Length & FOV

    2.7 to 13.5 mm: horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127° to 52°

    7 to 35 mm: horizontal FOV 42° to 15°, vertical FOV 23° to 9°, diagonal FOV 49° to 17°

  • Lens Mount

    2.7 to 13.5 mm: Ø14

    7 to 35 mm: Integrated

  • Iris TypeAuto-iris
  • Aperture

    2.7 to 13.5 mm: F1.4

    7 to 35 mm: F1.6

  • DORI
  • DORI

    2.7 to 13.5 mm:

    Wide: D: 86 m, O: 34 m, R: 17 m, I: 8 m

    Tele: D: 192 m, O: 76 m, R: 38 m, I: 19 m

    7 to 35 mm:

    Wide: D: 200 m, O: 79 m, R: 40 m, I: 20 m

    Tele: D: 580 m, O: 230 m, R: 116 m, I: 58 m

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light Range

    2.7 to 13.5 mm: up to 40 m

    7 to 35 mm: up to 50 m

  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 24 fps (3840 × 2160)

    30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Fourth Stream

    50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

    *Fourth stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    Fourth stream: H.265/H.264/MJPEG

    *Third stream and fourth stream are supported under certain settings.

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)5 fixed regions for main stream and sub-stream
  • Target CroppingYes
  • Audio
  • Audio TypeMono sound
  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, ISUP
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage

    MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Image Parameters SwitchYes
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC, HLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Audio

    1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

    1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset KeyYes
  • Event
  • Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart EventUnattended baggage detection, object removal detection, scene change detection, audio exception detection
  • LinkageUpload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
  • Deep Learning Function
  • Face CaptureYes
  • Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection
  • General
  • Power

    12 VDC ± 25%, 0.9 A, max. 10.8 W, Two-core terminal block

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W

  • DimensionØ153.5 mm × 133.1 mm (Ø6.0" × 5.2")
  • Package Dimension244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
  • Approx. 810 g (1.8 lb.)
  • With Package WeightApprox. 1719 g (3.8 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Web Client Language

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • Approval
  • EMC

    FCC SDoC (47 CFR Part 15, Subpart B);

    IC VoC (ICES-003: Issue 6, 2016);

  • ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
