Reduced price! 4K AcuSense Fixed Turret Network Camera View larger

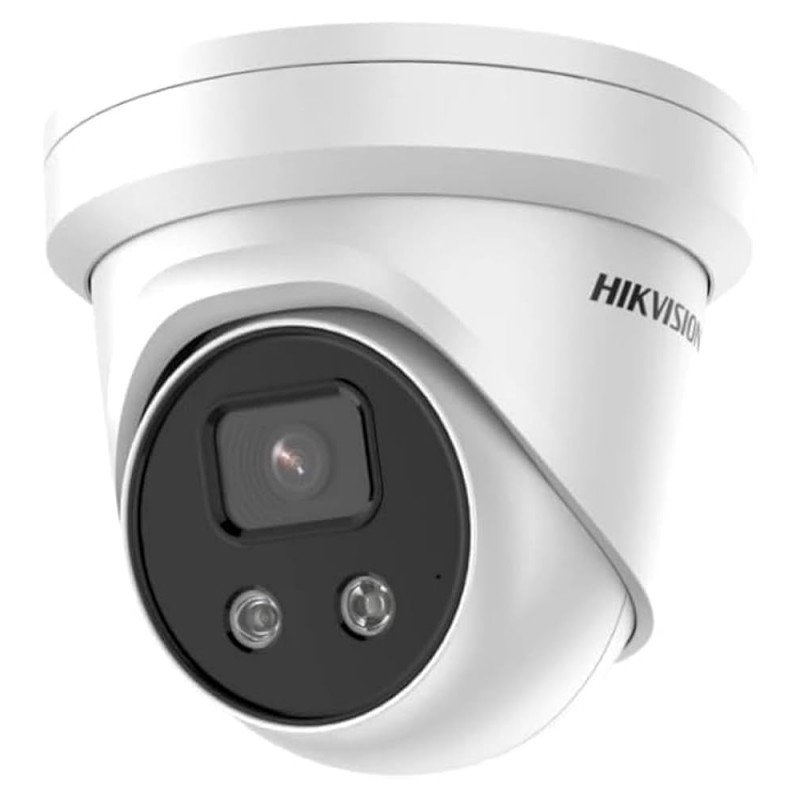

4K AcuSense Fixed Turret Network Camera

DS-2CD2386G2-IU

New

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light by 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Built-in microphone for real-time audio security(-U)
  • Water and dust resistant (IP67)

More details

$165.00

-18%

$201.21

More info

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8mm
  • Focal Length & FOV

    2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6
  • DORI
  • DORI

    2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 24 fps (3840 × 2160)

    30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Third Stream

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Target CroppingYes
  • Audio
  • Audio Type-U: mono sound
  • Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering-U: Yes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage

    MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Image Parameters SwitchYes
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC, HLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Built-in Microphone-U: Yes
  • Reset KeyYes
  • Event
  • Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart EventScene change detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
  • Deep Learning Function
  • Face CaptureYes
  • General
  • Power

    12 VDC ± 25%, 0.48 A, max. 5.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W

  • DimensionØ138.3 mm × 126.3 mm (Ø5.4" × 5")
  • Package Dimension170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9")
  • WeightApprox. 740 g (1.6 lb.)
  • With Package WeightApprox. 1020 g (2.2 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Language

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013)
